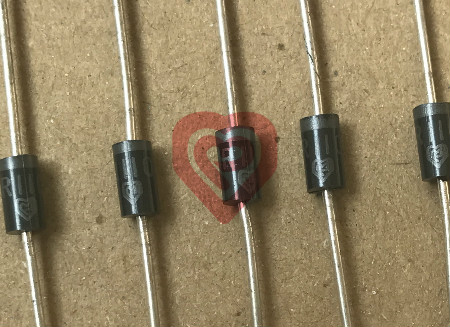

肖特基势垒整流管Schottky Barrier Rectifiers
代表型号及相关参数Representative Model And Parameters
|
型号 |
最大重复峰值 反电压 |
最大正向平均 整流电流 |
正向峰值浪涌电流 @8.3msg正弦半波 |
最大正向电压 @Ta=25℃ |
最大反向电流 @Vrrm Ta=25℃ |
封装形式 |
承认书 |
|
|
VRRM |
I(AV) |
IFSM |
VF@IF |
IR |
||||
|
V |
A |
A |
V |
A |
μ A |
|||
|
SR2100/SB2100 |
100 |
2.0 |
60 |
0.85 |
2.0 |
0.5 |
DO-15 |
|
|
SR2150/SB2150 |
150 |
2.0 |
60 |
0.85 |
2.0 |
0.2 |
DO-15 |
|
|
SR360/SB360 |
60 |
3.0 |
80 |
0.70 |
3.0 |
0.5 |
DO-201AD |
|
|
SR3100/SB3100 |
100 |
3.0 |
80 |
0.85 |
3.0 |
0.5 |
DO-201AD |
|
|
SR3150/SB3150 |
150 |
3.0 |
80 |
0.85 |
3.0 |
0.2 |
DO-201AD |
|
|
SR3200/SB3200 |
200 |
3.0 |
80 |
0.95 |
3.0 |
0.2 |
DO-201AD |
|
|
SR560/SB560 |
60 |
5.0 |
150 |
0.85 |
5.0 |
0.5 |
DO-201AD |
|
|
SR5100/SB5100 |
100 |
5.0 |
150 |
0.85 |
5.0 |
0.5 |
DO-201AD |
|
|
SR5150/SB5150 |
150 |
5.0 |
150 |
0.85 |
5.0 |
0.2 |
DO-201AD |
|
|
SR5200/SB5200 |
200 |
5.0 |
150 |
0.85 |
5.0 |
0.2 |
DO-201AD |
|
|
MBR10100 |
100 |
10.0 |
150 |
0.85 |
10.0 |
0.1 |
TO-220AC/ITO220AC |
|
|
MBR2040 |
40 |
20.0 |
200 |
0.65 |
20.0 |
0.1 |
TO-220AC/ITO220AC |
|
|
MBR2060 |
60 |
20.0 |
200 |
0.75 |
20.0 |
0.1 |
TO-220AC/ITO220AC |
|
|
MBR20100 |
100 |
20.0 |
200 |
0.85 |
20.0 |
0.1 |
TO-220AC/ITO220AC |
|
|
MBR20150 |
150 |
20.0 |
200 |
0.92 |
15.0 |
0.1 |
TO-220AC/ITO220AC |
|
|
MBR20200 |
200 |
20.0 |
200 |
0.95 |
10.0 |
0.1 |
TO-220AB/ITO221AB |
|
